FLEETA CAM
One FLEETA CAM, three ways to fit your fleet
Front, Front + Rear, or Front + Cabin — built on the same camera and the same FLEETA platform. Select a configuration to see its full details.
View by configuration

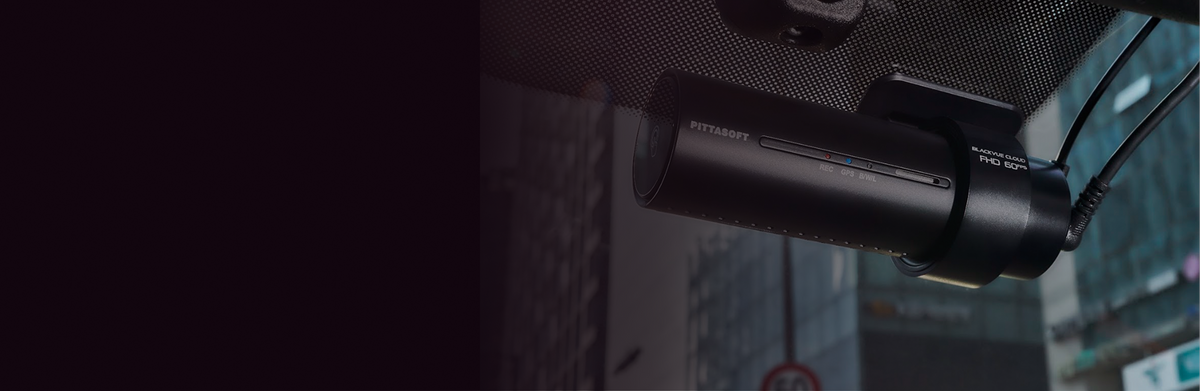

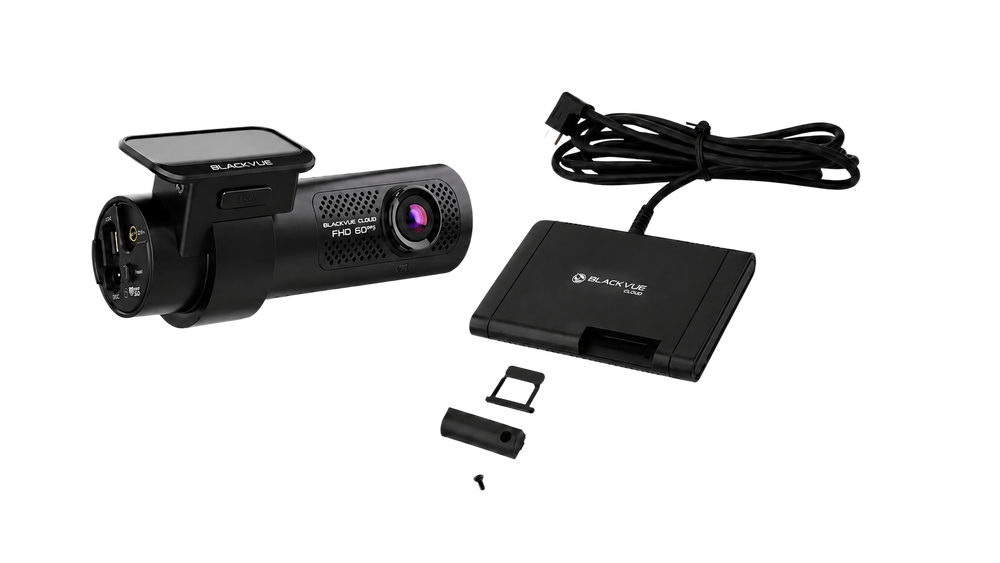

FLEETA CAM · Front
A sharp view of the road ahead — clear day or night. When something happens on the job, you'll know exactly what happened.
Get Custom Pricing
Everything you need to get started
Included
Front Cam
FLEETA CAM
Included

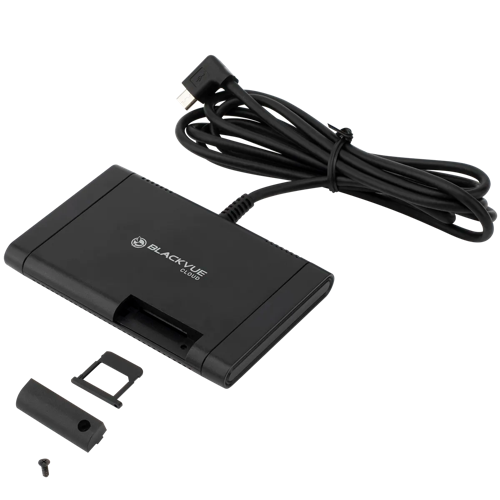

LTE Module
CM100G LTE
Included
Hardwiring Cable
Included
Included
MicroSD card
selected capacity
The LTE module does not include a SIM card. To use LTE features, purchase and install a SIM card separately.
OPTIONAL ADD-ONS
Available on request
BlackVue Battery
Parking mode power
Tamper Case
Anti-theft protection
More
Ask us
Need other BlackVue accessories? We'll include them in your quote.
FLEETA CAM · FRONT
Built for the road. Engineered for clarity.
A single front camera that's easy to install and easy on your budget — a clear, wide view of the road on every vehicle, without the extras you don't need.
Coverage on every vehicle
A clear, wide view of the road ahead
Wide 139° coverage that stays sharp, even at highway speed.
The easiest way to cover your whole fleet
One simple camera — the lowest-cost path to coverage on every vehicle.
Manage every vehicle from one screen
Check any camera remotely — no SD cards to pull, no site visits.
Clear proof when something happens
See exactly what happened — every incident, backed up on its own.
Know where every vehicle is
Track your whole fleet live and review up to 120 days of trip history.
Coverage that doesn't clock out
Keeps watching while parked, without draining the battery.
Easy installation and setup
No mechanic needed. For setup, simply download the FLEETA App and follow the prompts.
FLEETA CAM · FRONT
Recording Time
Estimated recording times by memory card capacity and image quality. Lower image quality provides longer recording time before older clips are overwritten.
* A dedicated bitrate and H.265 deliver crisp image quality with longer recording times.
| Model | Memory Capacity | Image Quality | Recording Time | |
|---|---|---|---|---|
| FLEETA CAM 1CH | Full HD @60fps | Duration (HH:MM) | Workdays (8 hrs) | |
| FLEETA CAM 1CHStandard Front | 64GB | Extreme | 8 HR 55 MIN | 1 Day |
| Highest | 15 HR 12 MIN | 1.7 Day | ||
| High | 21 HR 44 MIN | 2.5 Days | ||
| Normal | 38 HR 04 MIN | 4.6 Days | ||
| 512GB | Extreme | 71 HR 49 MIN | 8.7 Days | |
| Highest | 122 HR 07 MIN | 15.2 Days | ||
| High | 174 HR 29 MIN | 21.6 Days | ||
| Normal | 305 HR 28 MIN | 38 Days | ||
| Bitrate (Mbps) | Extreme | 16 + 10 Mbps | ||
| Highest | 9 + 7 Mbps | |||
| High | 6 + 5 Mbps | |||
| Normal | 3 + 2 Mbps | |||
FLEETA CAM · FRONT
Hardware & Specs
Explore the device, then dig into the numbers. Pick a component to see its callouts, key specs, and the full spec sheet.
Technical Specifications
| Model Name | FLEETA CAM 1CH |
|---|---|
| Image sensor | Sony STARVIS™ CMOS sensor (approx. 2.1 MP) |
| Resolution / frame rate | Full HD 1080p @ 60 fps |
| Field of view | 139° diagonal (120° horizontal / 62° vertical) |
| Dimensions / weight | 118.5 × 36 mm, 95 g |
| Video encoding | H.265 (HEVC) by default; H.264 (AVC) also supported |
| Storage support | microSD, up to 1TB — offered in this bundle at 64 GB or 512 GB |
| Connectivity | Built-in GPS (GPS + GLONASS) + Wi-Fi; CM100G LTE module included (Global or North America variant); SIM card sold separately |
| Parking Mode | Native, hardwiring cable included; compatible with BlackVue Parking Mode kits & batteries |
| Audio | Built-in speaker + microphone, two-way voice via app |
| Power consumption | Approx. 240 mA / 12V (normal mode, GPS on) · 190 mA / 12V (parking mode, GPS off) |
| Operating temperature | -20°C to 80°C (-4°F to 176°F) |
| Optional accessory | BTC-1C tamper-proof case |
Technical Specifications

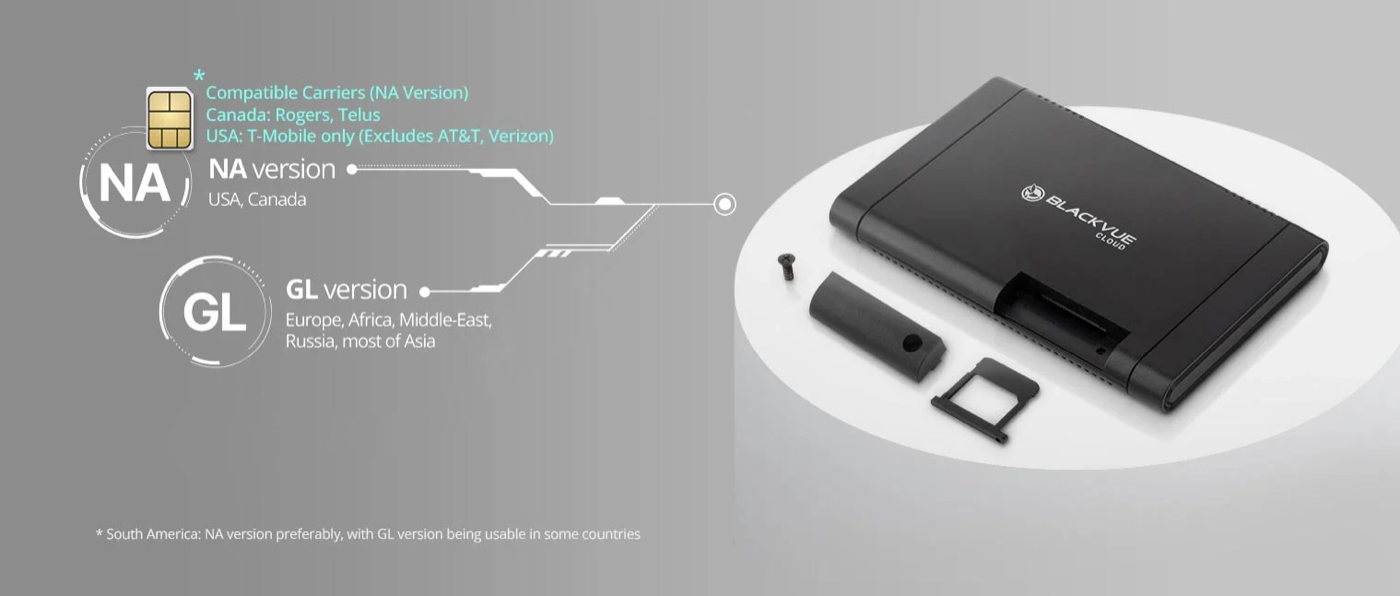

| Model Name | CM100GLTE |
|---|---|
| Color/Size/Weight | Black / Length 90 mm x Width 60 mm x Height 10 mm / 110g |
| LTE Module | Quectel EC25 |
| LTE Supported Band | NA (EC25-A) : B2/B4/B12 GL (EC25-E) : B1/B3/B5/B7/B8/B20 |
| LTE Features | Support up to Non-CA CAT. 4 FDD Support 1.4/3/5/10/15/20MHz RF Bandwidth LTE-FDD : Max 150Mbps(DL) / Max 50Mbps(UL) |
| Transmitting Power | Class 3 : 23dBm +/-2dBm @ LTE-FDD Bands |
| SIM Type | Support Nano SIM Card / 3.0V |
| Connector Type | Micro USB Type-B Connector with Harness Cable |
| USB Interface | Compliant with USB 2.0 specification(Slave Only), Reach up to 480Mbps for data transfer rate |
| LTE Antenna Type | Fixed / Intenna (Main, Diversity) |
| GPS | NA and GL: GNSS (GPS+GLONASS) |
| Power Supply | USB Harness Cable : 3.0m Typical Supply Voltage : 5.0V / 1A Supply Input Voltage : 3.3V ~ 5.5V / Max. Current : 2A |
| Power Consumption | Idle Mode : 30mA / Traffic Mode : 620mA @ Max. Power (23dBm) |
| Temperature Range | Operation Temperature Range : -35°C ~ +75°C Storage Temperature Range : -40°C ~ +85°C |
View full specifications
Specifications
| Model Name | FLEETA CAM 1CH |
|---|---|
| Channel | 1CH |
| Highlights | Full HD (Front), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module |
| Product Dimensions | Front: Black / Width 118.5 mm x Height 36 mm / 95 g |
| Memory Support | microSD card up to 1TB |
| Recording Modes | Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode. |
| Parking Mode | YES (hardwiring cable included) |
| Parking Mode Event Voice Notifications | YES |
| Imaging Sensor | Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) |
| Viewing Angle | Front: 139° diagonal (116° horizontal / 61° vertical) |
| Resolution Frame Rate | Front: Full HD (1920 x 1080) @ 60/30 fps * Frame rate may vary during Wi-Fi streaming. |
| Video Codec | H.265 (HEVC) (Default), H.264 (AVC) also supported |
| Image Quality and Bitrate Front/Rear | Extreme: 16 Mbps, Highest: 9 Mbps, High: 6 Mbps, Normal: 3 Mbps |
| Format Free | YES (Adaptive) |
| Event File Overwrite Protection | YES (up to 50) |
| SD Card Failure Alert | YES |
| Scheduled Reboot | YES |
| Video File Extension | MP4 |
| Wi-Fi | Built-in (802.11 b.g.n) |
Specifications
| Cloud Compatible | YES |
|---|---|
| GPS | Built-in (Dual Band : GPS, GLONASS) |
| Microphone | Built-in |
| Speaker | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |

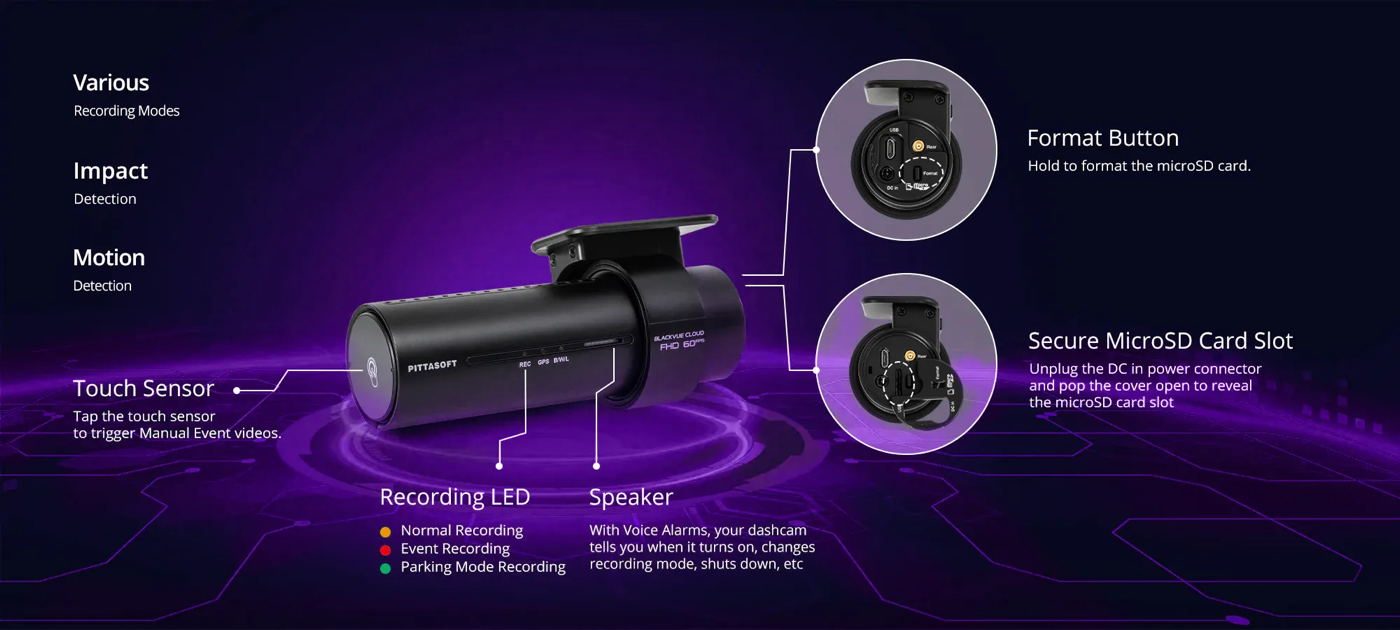

| LED Indicators | Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED |
| Button | Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings. |
| Operation Temperature | -20 °C – 80 °C (-4 °F – 176 °F) |
| Storage Temperature | -20 °C – 80 °C (-4 °F – 176 °F) |
| High Temp Cut Off | Approx. 80 °C (176 °F) |
| Backup Battery | Built-in supercapacitor |
| Input Power | DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption Hour | Normal Mode (GPS On/2CH): Avg. 380mA / 12V, Parking Mode (GPS Off/2CH): Avg. 300mA / 12V. * Actual power consumption may vary depending on use conditions and environment. |
| Certifications | Front: FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC |
| Software | FLEETA Web Viewer (* Chrome 77 or higher, Safari 15.6 or higher) |
| Application | FLEETA Application (* Android 10.0 or higher, iOS 15.0 or higher) |
| Others | Adaptive Format-Free File Management System |
| Bluetooth | Built-in (V2.1+EDR/4.2) |
| LTE | External (optional) |
View full specifications
Specifications
| Model Name | CM100GLTE |
|---|---|
| Color/Size/Weight | Black / Length 90 mm x Width 60 mm x Height 10 mm / 110g |
| LTE Module | Quectel EC25 |
| LTE Supported Band | NA (EC25-A) : B2/B4/B12 GL (EC25-E) : B1/B3/B5/B7/B8/B20 |
| LTE Features | Support up to Non-CA CAT. 4 FDD Support 1.4/3/5/10/15/20MHz RF Bandwidth LTE-FDD : Max 150Mbps(DL) / Max 50Mbps(UL) |
| Transmitting Power | Class 3 : 23dBm +/-2dBm @ LTE-FDD Bands |
| SIM Type | Support Nano SIM Card / 3.0V |
| Connector Type | Micro USB Type-B Connector with Harness Cable |
Specifications
| USB Interface | Compliant with USB 2.0 specification(Slave Only), Reach up to 480Mbps for data transfer rate |
|---|---|
| LTE Antenna Type | Fixed / Intenna (Main, Diversity) |
| GPS | NA and GL: GNSS (GPS+GLONASS) |
| Power Supply | USB Harness Cable : 3.0m Typical Supply Voltage : 5.0V / 1A Supply Input Voltage : 3.3V ~ 5.5V / Max. Current : 2A |
| Power Consumption | Idle Mode : 30mA / Traffic Mode : 620mA @ Max. Power (23dBm) |
| Temperature Range | Operation Temperature Range : -35°C ~ +75°C Storage Temperature Range : -40°C ~ +85°C |
| Certifications | CE, UKCA, FCC, ISED, RCM, TELEC, KC, WEEE, RoHS |
What's included
See exactly what's included with your selected configuration, including quantities and model numbers.
Accessories
-
Front Camera
-
CM100G LTE Module
-

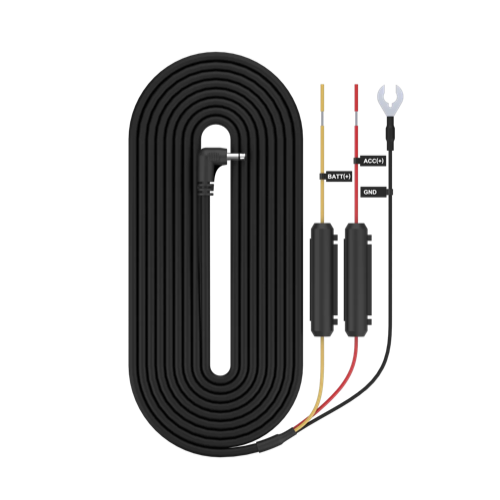

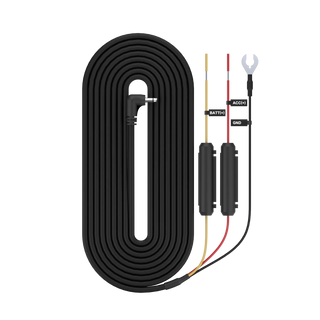

Hardwiring Cable
-

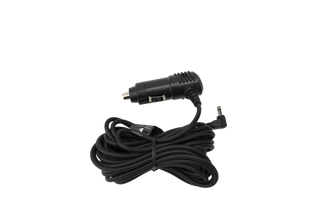

Cigarette Lighter Power adapter
-

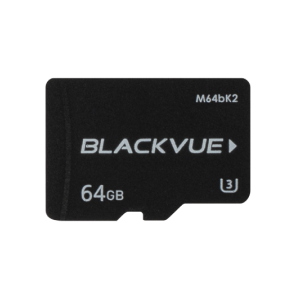

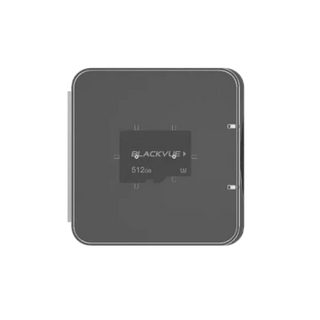

MicroSD Card
-

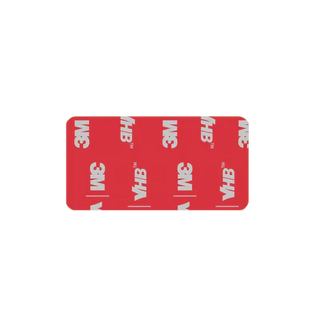

Double-sided tape for the mounting brackets
-

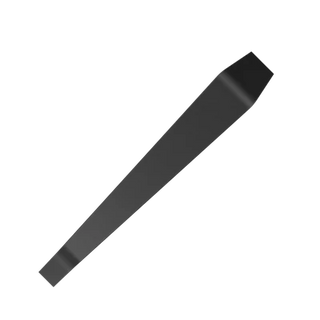

Pry tool / Trim Remover
-
Cable clips (3 EA)
-

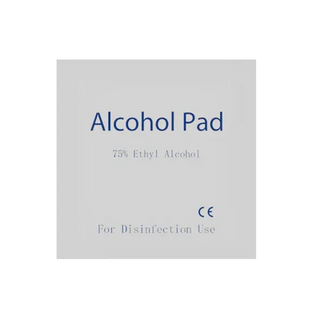

Alcohol Pad
